Transporation Vibration Tester ISTA Packaging Testing Machine
HD-A521 Program type Vibration test machine.pdf
Product Description:
Transporation Vibration Test Machine which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.
Main technical parameters are as follows:
| Max. Test Load |
100 Kg |
| Frequency Range |
60-300 rpm |
| Amplitude Range |
25.4 mm (1 inch) |
| Vibration Mode |
Roundtrip |
| Simulation Speed |
25~40 km/h |
| Woke Table Size |
1000×1200 mm |
| Outside Dimension (L×W×H) |
1255×1070×660 mm |
| Power Capacity |
1 HP |
| Weight |
125 Kg |
| Environmental Conditions |
Temperature: 5~40°C; Related Humidity <85% |
| Speed Mode |
DC converter or AC Frequency Control |
| Power |
220V, 50 Hz |
| Design Criteria |
EN71, UL, ASTM ISTA |
Features:
1. low price, which is only 10% of the same products in the USA.

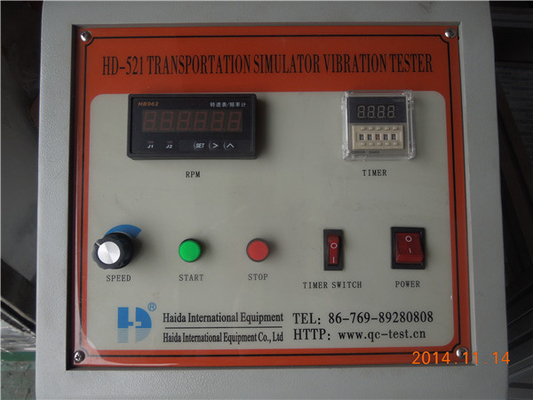

2. the digital screen dispaly the vibration frenquency
3. use rail track for the installation of the test sample, oprate easily and safely
4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable,no need to install the land-end screw.
After-Service:
Should any issues arise during your testing process, we guarantee:
Timely Response: A formal reply within 48 hours.
Swift Resolution: A proposed solution within 3 working days.
Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
