Λεπτομέρειες:
|
Λειτουργία: | Δοκιμή συμπίεσης | Ονομασία: | Δοκιμαστής συμπιεστικής αντοχής χάρτινου σωλήνα ποτηριού,Εργαλείο δοκιμής χάρτινου χάρτη,Εργαλείο δο |
---|---|---|---|
Επίδειξη: | LCD, ψηφιακή οθόνη | Αλλαγή μονάδων: | Kgf,N.( Προαιρετικό),Lbf |
Λειτουργία εμφάνισης: | Επαφή LCD, ψηφιακή λειτουργία | Λειτουργία δόνησης: | εναλλαγή |
Κίνηση: | κοχλίας και σερβοκινητήρας | Εύρος εύρους: | 25.4 mm P-P ((1 ίντσες) |
Προσαρμοσμένη υποστήριξη: | OEM ODM | Χρήση: | Όργανο Δοκιμών Χαρτιού |
Δοκιμαστικό εύρος: | 0-2000 kPa | Χαρακτηριστικά: | Υψηλή ακρίβεια, εύκολη λειτουργία, αξιόπιστη απόδοση |
Χωρητικότητα: | 2000 κιλά | Κλίμακα συχνοτήτων: | 60-300 στροφές/min ρυθμιζόμενες |
Ελεγκτής: | PLC (προγραμματιζόμενος λογικός ελεγκτής) | Πιλοτικό τεστ: | Γωνίες, άκρες, όψεις του δείγματος |
Ύψος κυλίνδρων: | 50 χιλιοστά | Πεδίο μέτρησης: | 0. 1 μg-200mgH2O (2ppm~100%) |
Χρήση: | Μηχανή δοκιμής σκληρότητας χαρτονιού | Τροφοδοσία: | Εναλλασσόμενο ρεύμα 220V 50HZ |
Δραστηριότητα: | Κράτημα αιχμής | Μέθοδος εμφάνισης: | Ψηφιακή οθόνη |
Εμφάνιση χρόνου: | Για να εμφανίζεται ο χρόνος κατά τη διάρκεια της δοκιμής (ών) | ||
Επισημαίνω: | Friction Tester for Paper Packaging Testing,Film Coefficient Friction Tester,Film Coefficient Friction Tester |
Attribute | Value |
---|---|
Function | compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument |
Name | paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument |
Display | LCD, Digital display |
Units switch | Kgf, N. (Optional), Lbf |
Display mode | LCD display, digital mode |
Vibration Mode | reciprocating |
Movement Drive | ball screw and servo motor |
Amplitude Range | 25.4 mm P-P(1 inch) |
Customized Support | OEM ODM |
Usage | Paper Testing Instrument |
Test Range | 0-2000 kPa |
Features | High precision, easy operation, reliable performance |
Capacity | 2000KG |
Frequency Range | 60-300 round/min adjustable |
Controller | PLC (programmable logic controller) |
Drop Test | Corners, edges, faces of sample |
Cylinder Height | 50 mm |
Measuring Range | 0.1 μg-200mgH2O (2ppm~100%) |
Use | paperboard stiffness test machine |
Power Supply | AC 220V 50Hz |
Function | Peak hold |
Display Method | digital display |
Time Display | To display time during test (s) |

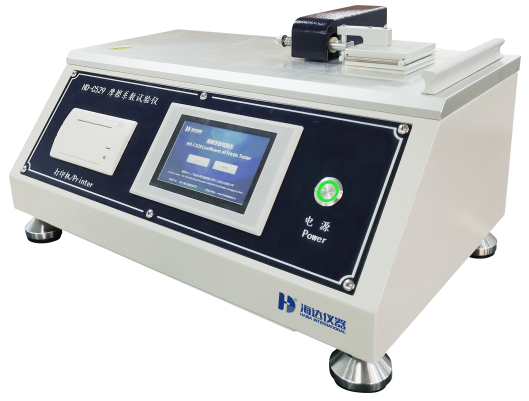

This tester complies with GB 10006-88 and ISO 8295-1986 standards. It measures dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness <0.2mm) when sliding on themselves or other materials. Also suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The friction coefficient measurement indicates product smoothness.
GB 10006-88, ISO 8295-1986
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force value test module for uniform linear motion. Samples are secured under the handle on the weight module. During testing, the force value test module moves uniformly, calculating the friction coefficient, with results printed by the built-in printer.
Specifications | 5093-HD |
---|---|
Control mode | touch screen control |
Test stroke | 1-200mm |
Test speed | 100±10mm/min (speed adjustable) |
Slider weight | 200±2g (others can be customized) |
Upper sample size | 63mm*63mm (L*W) |
Lower sample size | 80mm*200mm (L*W) |
Force test accuracy | ±0.02N |
Measuring range | 0.001-5N (expandable) |
Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
Usage environment | indoor temperature 20±10℃, relative humidity <85% |
Power supply | 1∮ AC220V |
Machine weight | Approx. 18kg |
Power | Approx. 350W |
Main test items | Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper |
About Haida: Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. Suitable for research institutions, quality inspection agencies, and academic fields. Complies with UL, ASTM, JIS, GB, and ISO standards.
