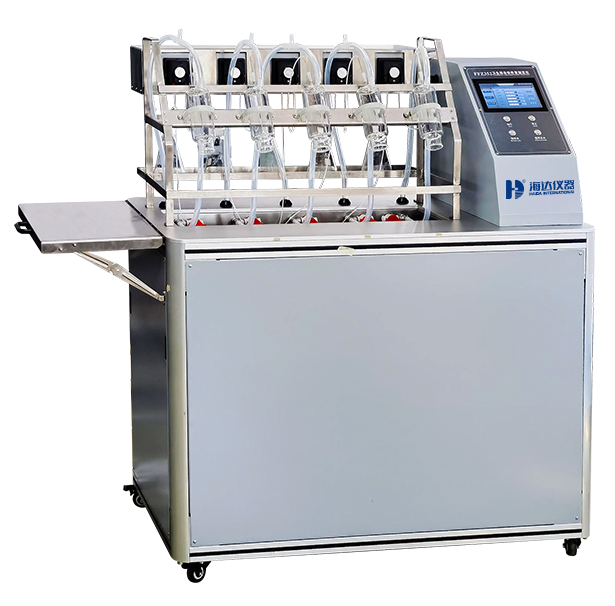

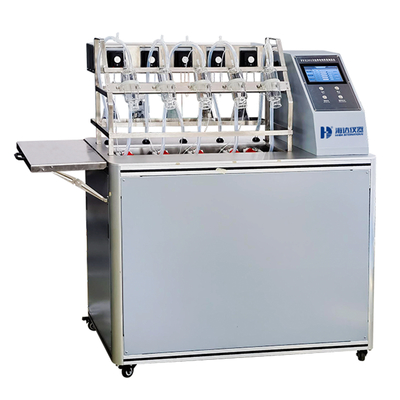

5014-HD Sanitary Tampon Absorption Tester with PLC Control

5014-HD Sanitary Tampon Absorption Tester with PLC Control
5014-HD Sanitary Tampon Absorption Tester with PLC Control 5014-HD Sanitary Tampon Absorption Tester with PLC Control 5014-HD Sanitary Tampon Absorption Tester with PLC Control

Μεγάλες Εικόνας :  5014-HD Sanitary Tampon Absorption Tester with PLC Control

Λεπτομέρειες:
Place of Origin: China
Μάρκα: Haida
Πιστοποίηση: CE、ISO
Model Number: 5014-HD
Πληρωμής & Αποστολής Όροι:
Minimum Order Quantity: 1 set
Τιμή: Διαπραγματεύσιμα
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

5014-HD Sanitary Tampon Absorption Tester with PLC Control

περιγραφή
Function: compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument Name: paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display: LCD,Digital display Feature: easy to operate
Operation Method: Automatic Product Type: Testing Instruments
Protection Device: Induction type protection device Control: PLC control
Sensing Method: Pressure Transmitter Stop: Stop test
Force Resolution: 1/500000 of the maximum test force fs Vibration Mode: reciprocating
Επισημαίνω:

Absorption Sanitary Tampon Tester

,

High Precision Sanitary Tampon Tester

,

PLC Control Sanitary Tampon Tester

5014-HD Sanitary Tampon Absorption Tester
5014-HD Sanitary Tampon Absorption Tester with PLC Control 0
Product Overview
The Sanitary Tampon Absorption Tester simulates real-world tampon usage by dropping test solution into the absorption body at a controlled flow rate, measuring absorption capacity through pre- and post-test mass difference calculations.
Key Features
  • Color touch screen display with Chinese/English interface and menu operation
  • Real-time test time display with adjustable settings
  • 32-bit STMicroelectronics multifunctional motherboard for core control
  • Peristaltic pump ensures uniform and stable liquid delivery
  • PLC control system with pressure transmitter sensing
  • Induction-type protection device for safety
Technical Specifications
Feature Specification
Water Bath Capacity 6 L
Testing Stations 5 stations
Water Bath Temperature Range -5°C to 100°C (±0.5°C accuracy)
Internal Circulation Pump Flow Rate 50 ± 2ml/h
External Circulation Pump Flow Rate 0-24000ml/h (adjustable)
Pumping Pipe Dimensions 6.4mm ID × 9.6mm OD
Needle Size 100mm length, 1.5mm ID, 1.8mm OD
Triangular Beakers 5 pieces included
Power Requirements 220V, 50Hz, 1kW
Dimensions (L×W×H) 800 × 500 × 1200mm
Weight 60kg
Compliance Standards
Complies with T/CNITA 09102-2018 Appendix E testing standards
Additional Images
5014-HD Sanitary Tampon Absorption Tester with PLC Control 1 5014-HD Sanitary Tampon Absorption Tester with PLC Control 2 5014-HD Sanitary Tampon Absorption Tester with PLC Control 3
Product Attributes
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Operation Method Automatic
Product Type Testing Instruments
Control System PLC control
Sensing Method Pressure Transmitter
Force Resolution 1/500000 of the maximum test force FS
Vibration Mode Reciprocating
