Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal Testing Machine

Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine
Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine

Μεγάλες Εικόνας :  Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal Testing Machine

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Haida
Πιστοποίηση: CE,,ISO
Αριθμό μοντέλου: 6021-HD
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Κάθε σετ προστατεύεται με ίνες ρητίνης και φιλμ PP, στη συνέχεια, τοποθετηθεί σε ισχυρή ξύλινη θήκη
Χρόνος παράδοσης: 20 ημέρες μετά την επιβεβαίωση της παραγγελίας
Όροι πληρωμής: Ε/Ε, Τ/Τ, D/A, D/P, Western Union, MoneyGram
Δυνατότητα προσφοράς: 300 σετ ανά μήνα

Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal Testing Machine

περιγραφή
Συνολικές διαστάσεις (L × W × H): 1200 × 700 × 1500 mm Διάμετρος θαλάμου καύσης (L × W × H): 385 × 204 × 360 mm
Χρόνος εφαρμογής φλογών: Ρυθμιστικό: 0-3200,0 δευτερόλεπτα Χρόνος καύσης: Ρυθμιστικό: 0-3200,0 δευτερόλεπτα
Γωνία καυστήρα: Καθορισμένη σε γωνία 90° (κατά κάθετη κατεύθυνση) Ύψος Φλόγας: Ρυθμίσιμο: 20-100 mm (συμμόρφωση με το πρότυπο)
Επίδειξη θερμοκρασίας: Ψηφιακή ανίχνευση, ανάλυση: 0,1°C κυβερνήτης χάλυβα: Μέγεθος: 500 mm, ακρίβεια: 1 mm
Αέριο καυσίμων: Υψηλής καθαρότητας υγροποιημένο αέριο (παρέχεται από τον χρήστη) Τροφοδοσία ρεύματος: Εναλλακτικός ρεύμα 220V, 50Hz
Επισημαίνω:

Automotive Interiors Flammability Test Equipment

,

Horizontal Flammability Test Equipment

,

Horizontal Testing Machine

Automotive Interior Materials Flammability Tester

Product Description

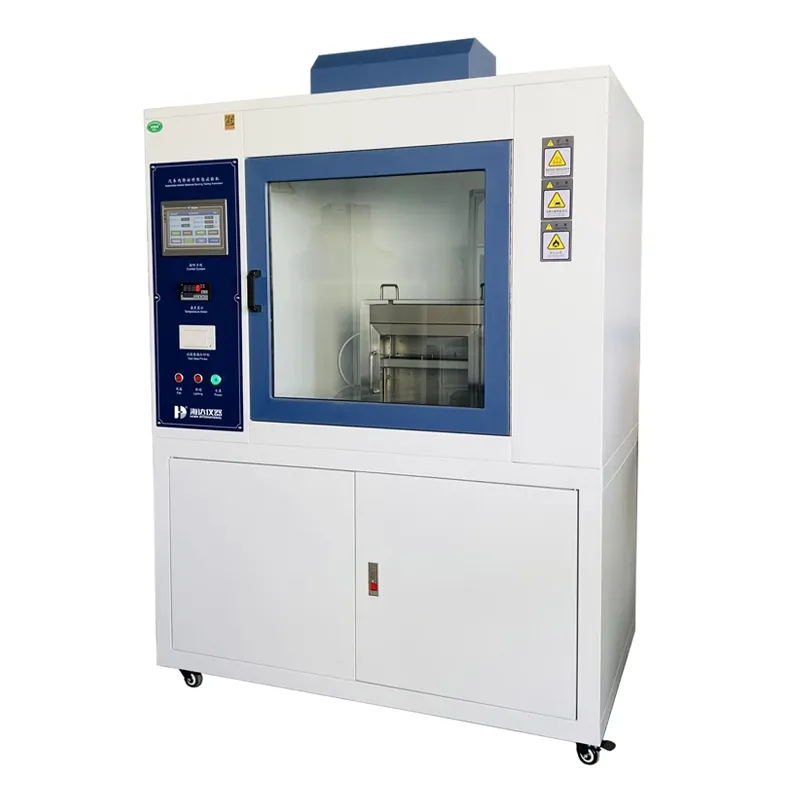

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.



Test Standard


GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795



Products Advantages


Stainless steel combustion chamber: Resistant to smoke and gas corrosion.

Automated control system: Includes automatic ignition, gas supply, timing, and test termination.

User-friendly interface: 7-inch color LCD touchscreen with real-time data display and printing.



Product Specifications

Model 6021-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with built-in test data printer.
Display System Real-time monitoring of flame application time, burning time, and burning speed. Controls include flame start/stop and combustion length input.
Overall Dimensions (L×W×H) 1200×700×1500mm
Combustion Chamber Dimensions (L×W×H) 385×204×360mm
Flame Application Time Adjustable: 0-3200.0 seconds
Burning Time Adjustable: 0-3200.0 seconds
Burner Angle Fixed at 90° (vertical)
Burner Specifications Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes
Flame Height Adjustable: 20-100mm (standard-compliant)
Temperature Display Digital readout; Resolution: 0.1°C
Steel Ruler Length: 500mm; Accuracy: 1mm
Fuel Gas High-purity liquefied gas (user-provided)
Configuration Includes:
• Control system
• Combustion chamber
• Burner assembly
• Solenoid valve
• High-voltage igniter
• Temperature display
• Signal control cables
• Upper/lower sample holders
• 500mm/1mm steel ruler
Power Supply AC 220V, 50Hz

Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 1Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 2Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 3


Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 4

Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 5Touch Screen Horizontal Flammability Test Equipment For Automotive Interiors / Horizontal  Testing Machine 6

Why Choose Us?

Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.

Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.

Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.

Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection



FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
