Λεπτομέρειες:
|
Λειτουργία: | Δοκιμή συμπίεσης | Ονομασία: | Δοκιμαστής συμπιεστικής αντοχής χάρτινου σωλήνα ποτηριού,Εργαλείο δοκιμής χάρτινου χάρτη,Εργαλείο δο |
---|---|---|---|
Εμφάνιση: | LCD, ψηφιακή οθόνη | Αλλαγή μονάδων: | Kgf,N.( Προαιρετικό),Lbf |
Εξεταστική ταχύτητα: | 10 ~ 200 χιλ./λεπτό | Διάσταση: | 360*264*400mm, 70 *34 * 60 εκ., 85*65*80εκ. |
Πεδίο μέτρησης: | 250-5600 Kpa,10 ~ 1000mN | Λειτουργία εμφάνισης: | Επαφή LCD, ψηφιακή λειτουργία |
Κριτήρια σχεδίου: | Το ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87 | ||
Επισημαίνω: | bottle axis deviation tester,Accurate Bottle Axis Deviation Tester |
Parameter | Value |
---|---|
Sample Diameter | Positive claw 3-55mm, reverse claw 55-145mm |
Centering Chuck | Four-claw/three-claw optional |
Measuring Range | 0-12.7mm |
Resolution | 0.001mm |
Indication Error | ±0.005mm |
Measurement Error | ≤0.05mm |
Measurable Height | 5mm-400mm |
Weight | 20kg |
Dimensions | 330mm × 240mm × 240mm |

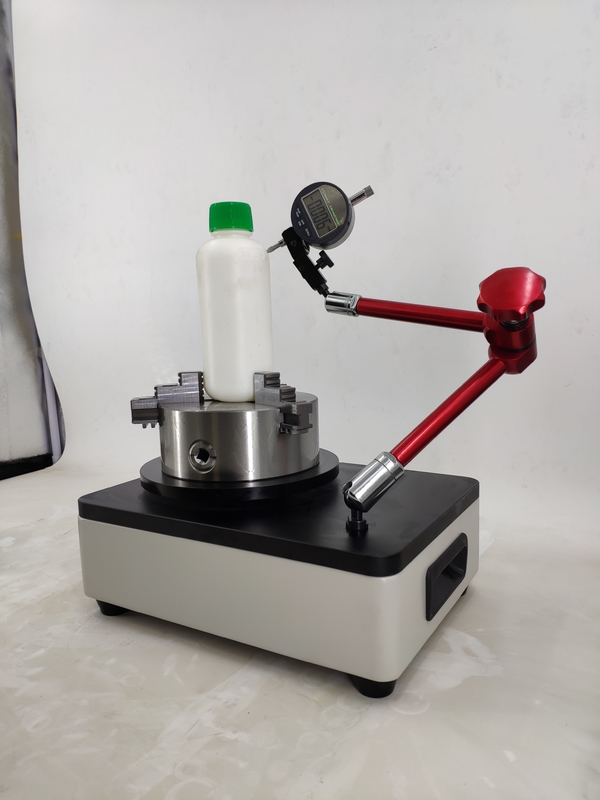

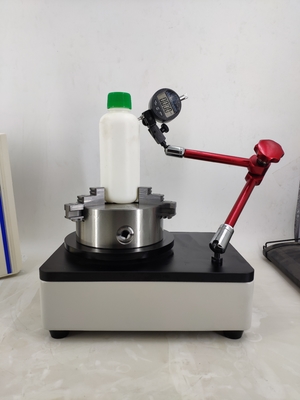

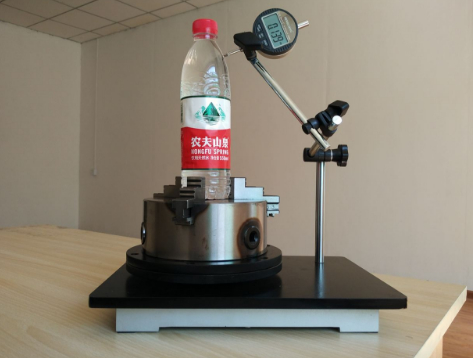

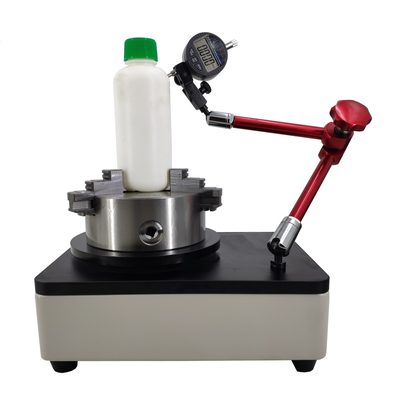

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.
Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
