5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

Μεγάλες Εικόνας : 5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

Λεπτομέρειες:

Place of Origin:	china
Μάρκα:	HAIDA
Πιστοποίηση:	CE
Model Number:	5108-HD

Πληρωμής & Αποστολής Όροι:

Minimum Order Quantity:	1set
Τιμή:	Διαπραγματεύσιμα
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability:	30 Sets per Month

Επικοινωνία

5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

περιγραφή

Minimum Detection Limit:	Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm	Peak Area Reproducibility:	< 0.5% RSD
Rsd:	≤1.5%	Grating Lines:	1800
Detector:	Photomultiplier Tube	Detection Object:	Solid
Content Analysis Range:	1ppm~99.99%	Test Object:	Powder, Solid, Liquid
Resolution:	0.1nm	Test Time:	100-300 seconds (adjustable)
Sensitivity:	0.001 Abs	Cooling Rate:	< 3.5min (450˚C to 50˚C)
Analysis:	4 phthalates in RoHS2.0 directive	Model:	1234
Spectral Bandwidth:	0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm
Επισημαίνω:	RoHS Compliance Tester , Solid Object Analysis Condom Leak Tester , 5108-HD Leak Tester

5108-HD Condom Electrical Leak Tester

Product Attributes

Attribute	Value
Minimum Detection Limit	Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm
Peak Area Reproducibility	< 0.5% RSD
Rsd	≤1.5%
Grating Lines	1800
Detector	Photomultiplier Tube
Detection Object	Solid
Content Analysis Range	1ppm~99.99%
Test Object	Powder, Solid, Liquid
Resolution	0.1nm
Test Time	100-300 seconds (adjustable)
Sensitivity	0.001 Abs
Cooling Rate	< 3.5min (450˚C to 50˚C)
Analysis	4 phthalates in RoHS2.0 directive
Model	1234
Spectral Bandwidth	0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm

Product Description

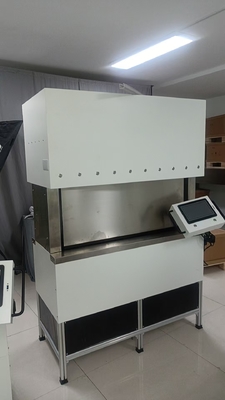

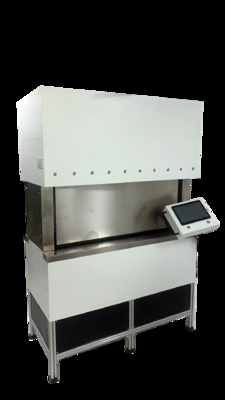

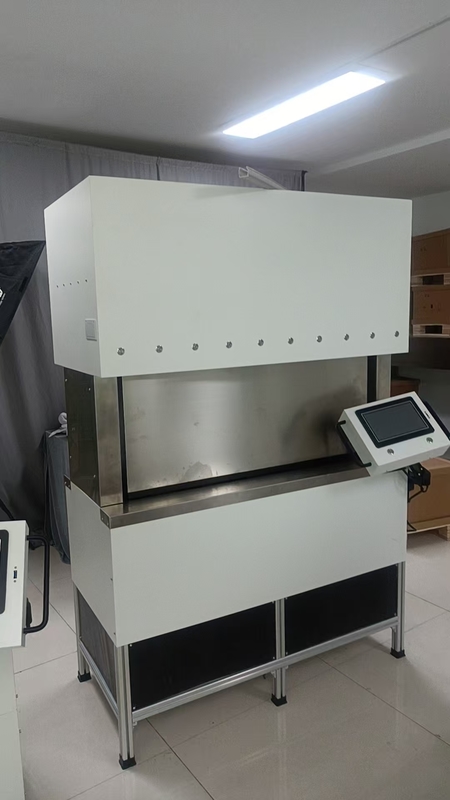

The condom electrical leak detector is designed for rubber sleeves and condom pinhole leakage testing, compliant with GB7544, ISO 4074, and ISO 25841 standards.

Key Features

Comfortable and safe operation with compact structure for easy maintenance
Dual testing modes: water leakage test (visual observation) and electrical inspection
Interchangeable measuring heads for male and female condoms
10 independent automatic lifting test heads with automatic data transmission
Data acquisition port for printing and saving results
Wide test range accommodates various sample sizes

Testing Principles

Electrical Inspection Method: Detects pinholes using electronic shielding. Intact condoms act as insulators, while those with pinholes complete the current circuit.

Visual Inspection Method: Involves filling condoms with water and manually observing for leaks.

Technical Parameters

Item	Parameter
Test position	10
Water temperature	(10℃～40℃), time (10±2)s
Injection volume	(50mL～1000mL) ±10mL (automatic water injection, adjustable)
DC voltage	(10±0.1)V
Voltmeter accuracy	±0.3mV
Precision resistance	(10±0.5)kΩ
Dimensions	1000 mm (L) × 450 mm (W) × 1600 mm (H)
Weight	Approx. 180kg
Configuration	Main unit workstation, measuring electrode rod, male condom test heads, female condom leak test stand

View product video demonstration

About Haida: Founded in 2004, Haida® is a market leader in testing equipment based in Dongguan, China. The company specializes in four main manufacturing series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), and Foam, Furniture & Optical (FFO), with additional expertise in textile, footwear, leather, luggage, baby carriage, toys, and optical testing equipment.
