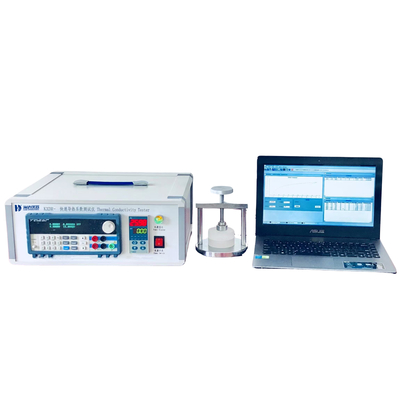

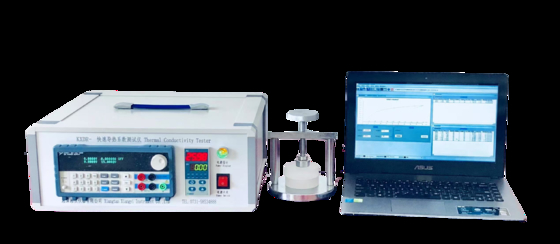

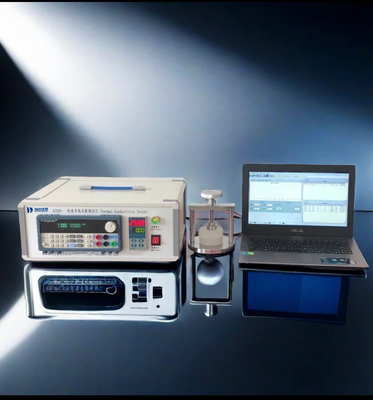

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
Technical Parameters
Item | Parameters |
Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
Measurement relative error | ≤3% |
Repeatability error | ≤3% |
Temperature resolution | 0.01℃ |
Measuring time | 2~180 seconds |
Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
Control mode | By computer and software |
Machine dimension | (L*W*H)380*400*165mm |
Machine weight | Approx. 5KG |
Power | AC 220V±10%, 50/60 Hz, 200W |
