Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Πιστοποίηση
ΚΙΝΑ Hai Da Labtester Πιστοποιήσεις
ΚΙΝΑ Hai Da Labtester Πιστοποιήσεις
Αναθεωρήσεις πελατών
Ναι λάβαμε τη μηχανή την προηγούμενη εβδομάδα. Αυτή η μηχανή ήταν συμπαθητική, και ευχαριστεί τα serives μεταπωλήσεων, ήταν πολύ επαγγελματική.

—— Peter Maas

Εκ μέρους της εταιρείας να επισκεφθείτε τα εργοστάσια και τις εταιρείες σας, το τεχνικό προσωπικό είναι πολύ επαγγελματικό και υπομονετικό, νομίζω ότι θα χαρώ να συνεργαστώ μαζί σας ξανά.

—— Steve Hubbard

Είμαι Online Chat Now

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Μεγάλες Εικόνας :  Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Λεπτομέρειες:
Place of Origin: China
Μάρκα: Haida
Πιστοποίηση: CE,,ISO
Model Number: 60084-HD
Πληρωμής & Αποστολής Όροι:
Minimum Order Quantity: 1
Τιμή: Διαπραγματεύσιμα
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

περιγραφή
Usage: Quality Control and Testing Transformer Capacity: 1000VA
Runway: Length 100mm Impact Angle: 90 degree
Temperature Tester: Room temperature to 200°C Dimension: 650mm×400×830mm
Current Measurement Range: 10pA~1mA Fixture Load: 2.5N
Ozone Produced Mode: Ozone generator or UV absorption method Test Mode A: Room temperature
Dispaly: Digital Test Speed: Adjustable
Application: Industrial Display Mode: touch screen display
Ball Weight: 357,533,1042,2280 g Swing Range: R300mm
Timing Range: 0-10000h Abrasion Wheel: 2
Specimen Holder: Inner groove width 12mm Load: 1kg,(or specified)
Cutting Speed: 100~3000mm/min adjustable Horizontal: 500mm * 250mm * 500m
Επισημαίνω:

Plastic Thermal Conductivity Tester

,

Rubber Thermal Conductivity Tester

,

Thermal Conductivity Tester

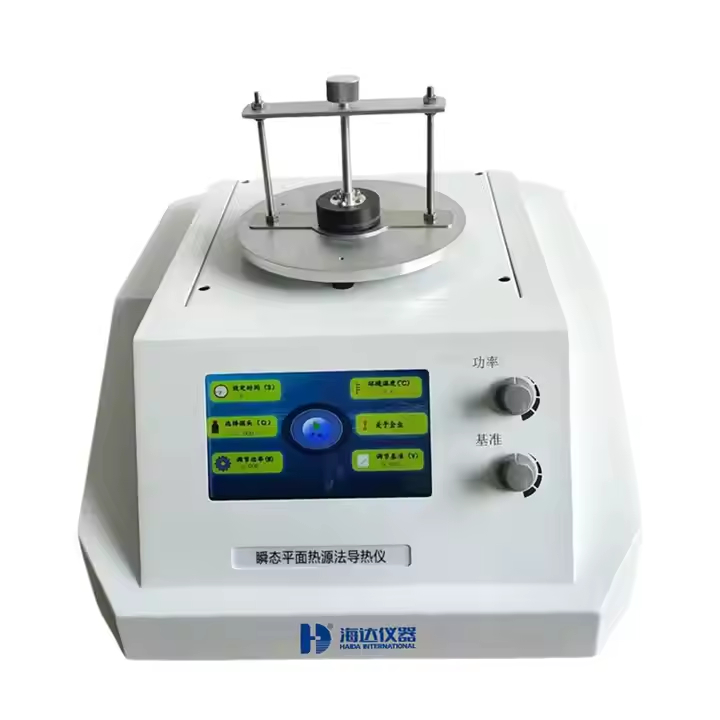

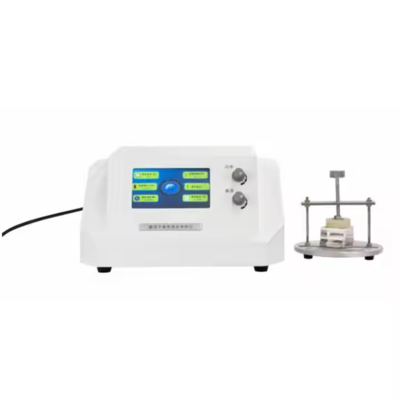

HD-DRL-S Thermal Conductivity Tester(TPS Method)

Description:

Thermal conductivity tester based on transient plane heat source technology (TPS). This product is independently developed by AVIC Dingli Instruments. It has stable test performance and strong data processing and analysis capabilities. It can be used to measure the thermal conductivity of various types of materials.


Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 0

Technical Paramet

Thermal conductivity range 0.00001~300W/(m*K)
Measuring temperature range RT~130ºC

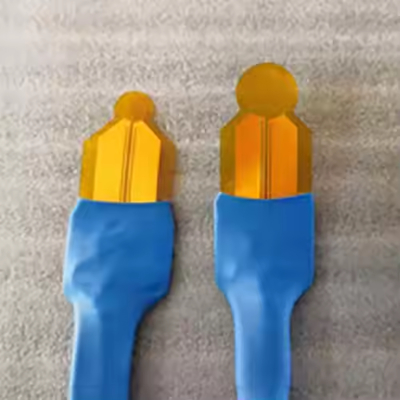

Probe diameter Probe No. 1: φ7.5mm;
Probe No. 2: φ15mm
Measuring time 5~160 seconds
Sample temperature rise < 15ºC
Sample size Probe No. 1 sample: ≥7.5*7.5*3.75mm;
Probe No. 2 sample: ≥15*15*7.5mm
Note: Probe No. 1 measures thinner low-conductivity materials. If the surface of the sample to be measured is smooth and sticky, the sample can be stacked
Test sample power P Probe No. 1 power: 0<P<1w;
Probe No. 2 power: 0<P<20w
Accuracy of measurement results ±3%
Control mode Computer and software, software can export PDF Report, can export EXECL data
Protection system Circuit with overload protection prompt

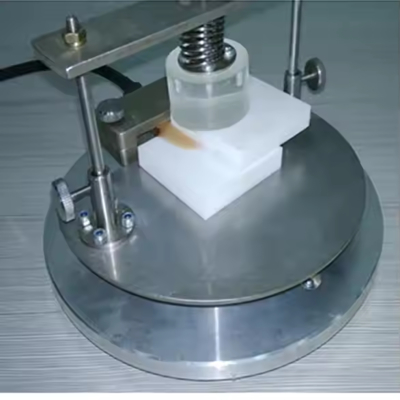

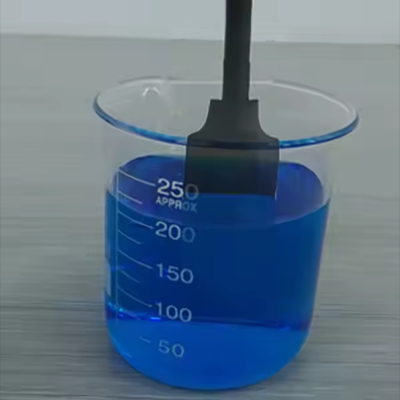

Sample testing clamps Powder sample test container, liquid sample test cup, solid sample test fixture for optional
Power AC 220V±10%, 50/60 Hz, 500W

About us


Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 5Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 6Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 7


Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 8

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 9

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing 10

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
