Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials
Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials

Μεγάλες Εικόνας :  Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Haida
Πιστοποίηση: CE,,ISO
Αριθμό μοντέλου: 60087-HD
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Κάθε σετ προστατεύεται με ίνες ρητίνης και φιλμ PP, στη συνέχεια, τοποθετηθεί σε ισχυρή ξύλινη θήκη
Χρόνος παράδοσης: 20 ημέρες μετά την επιβεβαίωση της παραγγελίας
Όροι πληρωμής: Ε/Ε, Τ/Τ, D/A, D/P, Western Union, MoneyGram
Δυνατότητα προσφοράς: 300 σετ ανά μήνα

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

περιγραφή
Παραχθείς όζον τρόπος: Γεννήτρια όζοντος ή UV μέθοδος απορρόφησης Τρόπος δοκιμής Α: Θερμοκρασία δωματίου
Επίδειξη: Ψηφιακό Ταχύτητα δοκιμής: Ρυθμιζόμενο
Προϊόν: λαστιχένιος εξοπλισμός δοκιμής Μέθοδος ελέγχου: Υπολογιστική αυτόματη δοκιμή
Οπτική Μεγέθυνση: 100 φορές Η θερμοκρασία χτύπησε: Κανονική θερμοκρασία ~ 200°C
Ηλεκτρική ισχύς θέρμανσης: Δυναμικό ρεύματος άνω των 50 kV Πρότυπα δοκιμών: ASTM, ISO, GB, JIS, κ.λπ.
Κύλινδρος: Διάμετρος 9.5504±0.0076mm Διάμετρος ανίχνευσης A: 7,5 χιλ.
Δυνατότητα έγχυσης: 40*65 cm3 Προμήθεια αέρα: 0.6MPa
Προδιαγραφές: 20-88HRA, 20-100HRB, 20-70HRC
Επισημαίνω:

Rubber Plastic Test Equipment

,

Rubber Plastic Test Machine

,

Board materials Rubber Plastic Test Equipment

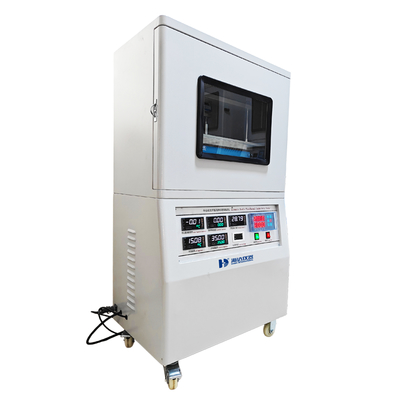

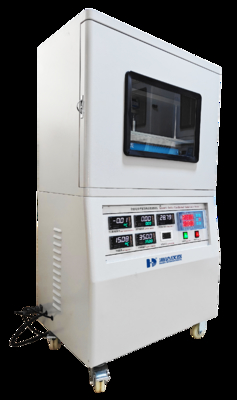

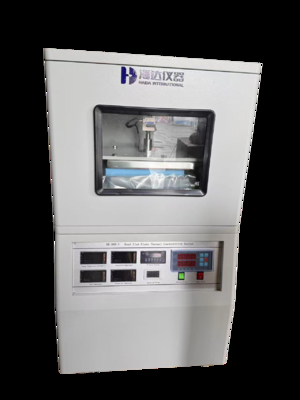

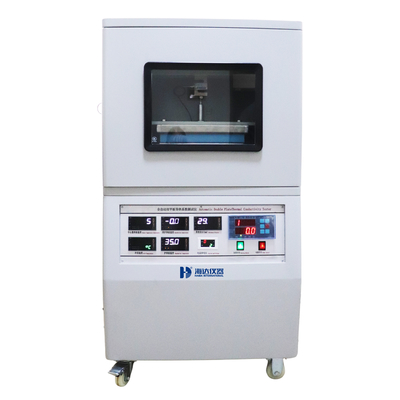

HD-DRH-V Thermal Conductivity Tester

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 0

Technical Paramet

Item
Parameters
Thermal conductivity range
0.001~3.000 W/m.K
Measuring accuracy
≥±2%
Repeatability error
≤±1%
Sample state
Can test solid material, powder material
Measuring time
60 minutes
Hot surface temperature range
RT~150ºC, resolution: 0.01ºC
Cold surface temperature range
0~60 ºC, resolution: 0.01 ºC
Pressure measurement range
0~500N, resolution: 0.1 N
Sample thickness range
0~50mm, resolution 0.001mm, automatic digital thickness measurement
Specimen size
(Length*Width*Thickness)300*300*(5-50)mm (standard configuration)
Control method
By computer and software
Machine dimension
(L*W*H)550*450*1500mm
Machine weight
Approx. 100KG
Bath dimension
(L*W*H)300*350*530mm
Bath weight
Approx. 35KG
Power
1∮ AC 220V 50W

About us


Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 5Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 6Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 7


Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 8

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 9

Thermal Conductivity Testing With Rubber Plastic Test Equipment  Specimen Size / Digital Thickness Measurement / Board Materials 10

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
