Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time
Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Μεγάλες Εικόνας :  Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Haida
Πιστοποίηση: CE,,ISO
Αριθμό μοντέλου: 60088-HD
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Κάθε σετ προστατεύεται με ίνες ρητίνης και φιλμ PP, στη συνέχεια, τοποθετηθεί σε ισχυρή ξύλινη θήκη
Χρόνος παράδοσης: 20 ημέρες μετά την επιβεβαίωση της παραγγελίας
Όροι πληρωμής: Ε/Ε, Τ/Τ, D/A, D/P, Western Union, MoneyGram
Δυνατότητα προσφοράς: 300 σετ ανά μήνα

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

περιγραφή
Παραχθείς όζον τρόπος: Γεννήτρια όζοντος ή UV μέθοδος απορρόφησης Τρόπος δοκιμής Α: Θερμοκρασία δωματίου
Επίδειξη: Ψηφιακό Ταχύτητα δοκιμής: Ρυθμιζόμενο
Προϊόν: λαστιχένιος εξοπλισμός δοκιμής Μέθοδος ελέγχου: Υπολογιστική αυτόματη δοκιμή
Η θερμοκρασία χτύπησε: Κανονική θερμοκρασία ~ 200°C Ηλεκτρική ισχύς θέρμανσης: Δυναμικό ρεύματος άνω των 50 kV
Πρότυπα δοκιμών: ASTM, ISO, GB, JIS, κ.λπ.
Επισημαίνω:

Haidathermal Conductivity Tester

,

surface temperature Thermal Conductivity Tester

,

Hot Disk Thermal Conductivity Tester

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

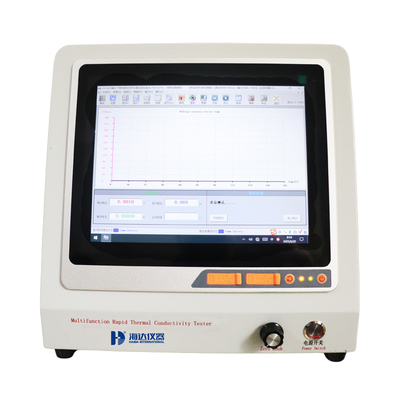

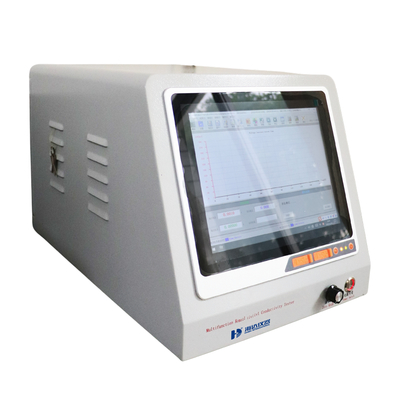

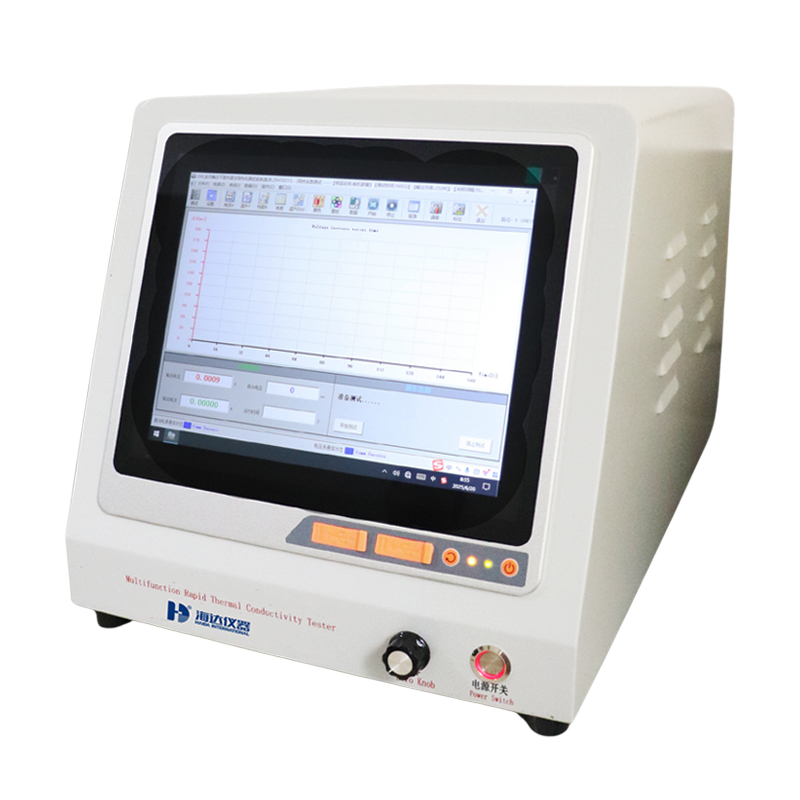

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item
Parameters
Thermal conductivity range
0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range
0.1~100m2/s
Thermal storage coefficient range
0.1~30w/(m2.k)
Specific heat capacity range
0.1~5kJ/(kg.ºC)
Thermal resistance range
0.5~0.000005mm2.k/w
Temperature measuring accuracy
≤0.0001ºC
Measurement relative error
≤3%
Repeatability error
≤3%
Measuring time
1~120 seconds
Sample test temperature range
Room temperature
(Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe
Φ15mm
Various sample tests
a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample
surface is required, and a special sample clamping device is provided.
b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided.
c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing.
d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing.
e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode
Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension
(L*W*H)380*40*450mm
Machine weight
Approx. 20KG
Power
AC 220V±10%, 50/60 Hz, 500W

About us


Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 9Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 10Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 11


Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 12

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 13

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 14

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
